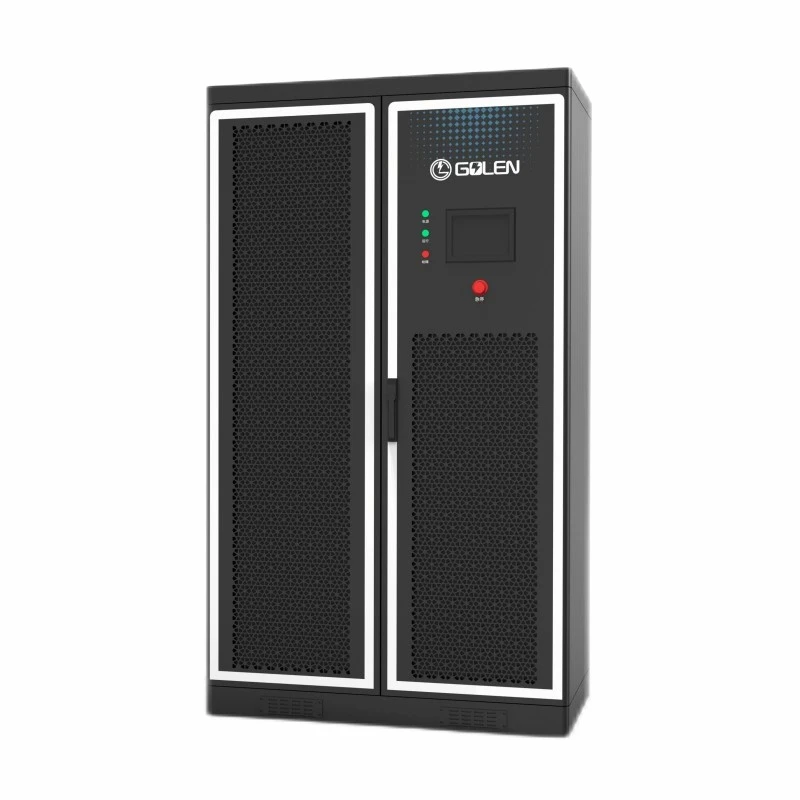

Lub PCS no txhawb cov kab hluav taws xob - txuas nrog them & tso tawm thiab tawm - kab sib chaws ywj pheej inverter ua haujlwm. Lub zog reactive kho tau thiab lub zog nquag ua kom muaj kev tswj xyuas meej ntawm kev faib hluav taws xob, ua rau cov kev xav tau ntawm cov haujlwm loj -. Optionally, nws tuaj yeem txhawb nqa lub tshuab hluav taws xob siv hluav taws xob, ua kom tsis muaj kev sib hloov ntawm ntawm - daim phiaj thiab tawm - daim phiaj ua haujlwm. Nws tuaj yeem txias pib nrog lub nra hnyav thiab tuav peb - theem 100% cov khoom tsis sib npaug, ua kom lub zog ruaj khov hauv cov khoom siv hluav taws xob nyuaj tshaj plaws.
|
Qauv |
LEG-630K-TT |
|
DC Input |
|
|
Max. DC voltage [V] |
850 |
|
DC Voltage Ntau [V] |
630~850 |
|
AC tso zis (ntawm daim phiaj) |
|
|
Rated tso zis zog [kW] |
630 |
|
Max. Tso zis zog [kVA] |
693 |
|
Max. Cov zis tam sim no [A] |
1000 |
|
Rated Daim phiaj Voltage [V] |
3W/N/PE, 400 |
|
Rated Grid Zaus [Hz] |
50/60 |
|
Hwj chim Factor |
0.9 (ua ntej) ~ 0.9 (lagging) |
|
THDI |
<3% (@ rated power) |
|
AC tso zis (Off Grid) |
|
|
Rated tso zis zog [kW] |
630 |
|
Max. Tso zis zog [kVA] |
693 |
|
Rated Tso zis Voltage [V] |
400 |
|
Rated Zaus [Hz] |
50/60 |
|
Tshaj peev xwm |
110% kev ua haujlwm ntev - lub sijhawm ua haujlwm |
|
THDu |
<3% (@ linear load) |
|
Unbalanced Load Capacity |
100% |
|
Kev tiv thaiv |
|
|
DC Overvoltage tiv thaiv |
Muaj |
|
DC luv Circuit Court tiv thaiv |
Muaj |
|
AC Overvoltage tiv thaiv |
Muaj |
|
Rov qab Polarity Protection |
Muaj |
|
Module Temp. Kev tiv thaiv |
Muaj |
|
Kev ua tau zoo |
|
|
Max. Kev ua tau zoo |
97.6% |
|
Cov ntaub ntawv dav dav |
|
|
Kev rho tawm Transformer |
Muaj |
|
Kev tiv thaiv Ingress |
IP20 |
|
Txoj kev txias |
Cua txias |
|
txheeb ze humidity |
0 ~ 95%, tsis yog -condensing |
|
Temp. Ntau [degree] |
-30~+55 |
|
Qhov siab [m] |
5000 (>3000 tawm) |
|
Standby Power Consumption [W] |
<50 |
|
Zaub |
Kov npo |
|
Dispatch Communication Hom |
Ethernet, RS485 |
|
Kev sib txuas lus hom |
RS485, UA |
|
Kev sib txuas lus raws tu qauv |
Modbus, IEC 104 |
|
Qhov hnyav [kg] |
3200 |
|
Dimension (WDH) [mm] |
2400x1050x2260 |
